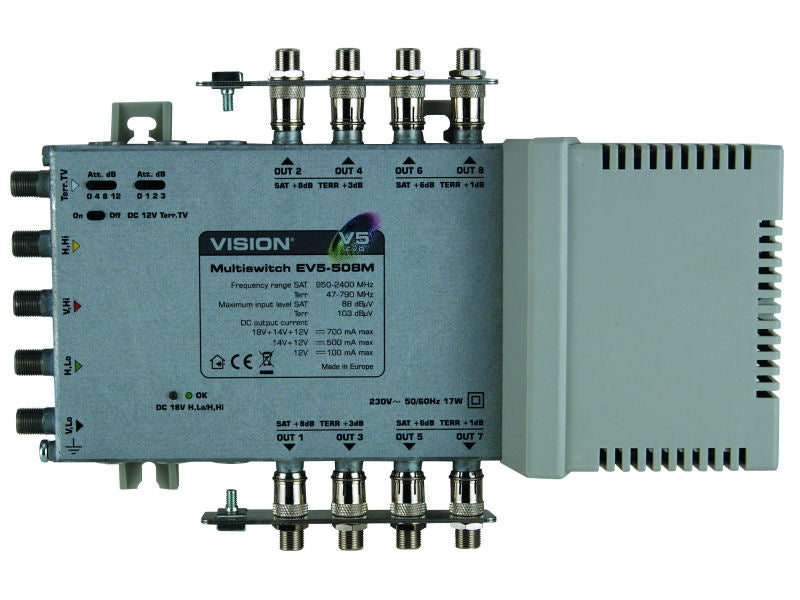

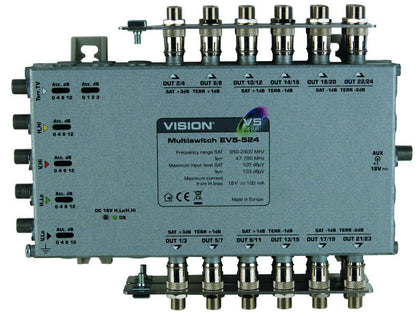

VISION V5 Multiswitch 5x8 AC EVO
- Product SKU: EV5-508M
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|IRS|Switches - Vision V5
The Vision EV5-508M is tuned to minimise 4G-800 LTE interference and has also been developed for very low current consumption from trunk cables and receivers alike.
This series of multiswitches are designed to be used either as stand-alone radial multiswitches for "star" wired networks or to be used in conjunction as a power source with the line powered multiswitches for smaller to medium cascaded networks.
These mains-powered multiswitches can be used to power up to six line powered multiswitches and an LNB. It will power a Quattro LNB via the horizontal and vertical inputs at up to 650mA max. Power is provided from the built-in switch-mode power supply.
EV5 has been developed to minimise 4G-800 LTE interference with built-in filtering of the terrestrial input to 790MHz and sharp filtering and excellent isolation of the satellite inputs. The diecast housing provides maximum screening and is fitted with "slot-on" mounting brackets for easy installation.
Number of Inputs: 4 x SAT + 1 x Terrestrial
Number of Outputs: 8
Frequency Range SAT: 950 – 2400MHz
Frequency Range Terr: 47 – 790MHz
Gain SAT 950 / 2400MHz Fixed Slope Pre-emphasis: Output 1 to 4: 0 to +8dB, Output 5 to 8: -1 to +6dB
Gain Terrestrial 40 / 862MHz Fixed Slope Pre-emphasis: Output 1 to 4: -1 to +3dB, Output 5 to 8: -2 to +1dB
Gain Control SAT: 0 – 12dB in 4dB steps
Gain Control Terr: 0 – 15dB in 1dB steps
Output Level SAT (IMD³ – 35dB): 96dBuV
Output Level (DIN 45004B) IMD³ - 60: Output 1 to 4: 91dBuV, Output 5 to 8: 89dBuV
SAT / SAT Input Isolation: >30dB
SAT / SAT / Terr Output Isolation: >30dB / 35dB
Rejection TV –SAT / SAT-TV: >30dB / 40dB
DC Pass from external PSU: 14V / 18V / (Terrestrial) 12V <0.65A total (12V – 100mA)
Current consumption from receiver: <65mA
Control Signals V/Lo, H/Lo: 11.5V – 14.5V/0kHz, 16.5 – 19V/0kHz
Control Signals V/Hi, H/Hi: 11.5V – 14.5V/22kHz, 16.5 – 19V/22kHz
Power Consumption 230V AC 50/60Hz without external load/with maximum external load: 2W / 17W
Output earth-bars Quick "F" male to female saddle and clamp fixing for 6mm earth wire + 4mm earth post on each corner housing: 2 x 4
Operating temperature: -20 to +50 degrees
Dimensions mm: 253x135x52
Weight: 0.8kg
