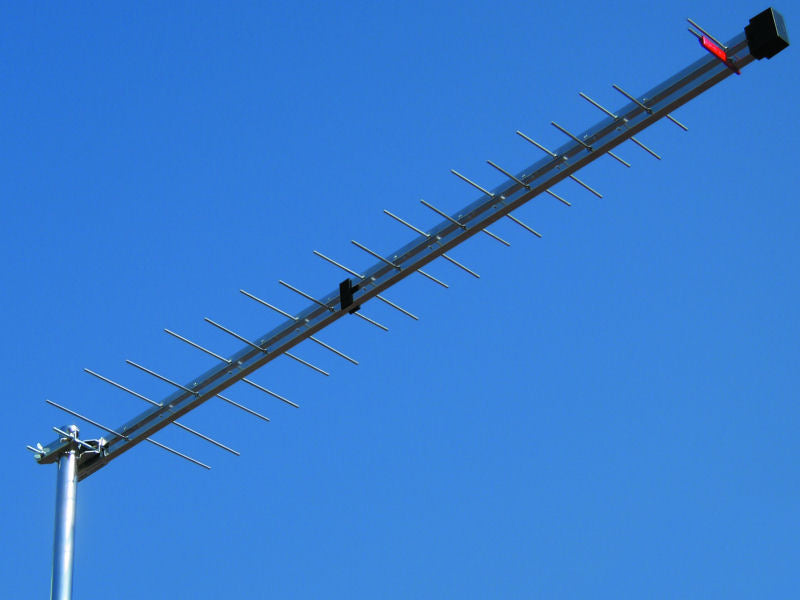

The VISION V10-36L-SUP is a 4G-800 28 Element Standard Log-Period UHF TV Aerial with patent protected "Stub-Tuning" technology for 4G-800 Ch21 - 60.
- Flat 10.0dBd (12.15dBi) ± 1.0dB gain
- Patent protected "Stub-Tuning"
- High out-of-band rejection with negative gain
- For medium to strong signal areas with high directivity
- Lightweight, low wind load design
Total no of Elements: 36
Junction Box: Weatherproof end cover with PCB mounted F-connector
Boom sizes / Element Material / Construction: 2 x 14mm / 4mm dia aluminium wire / Magnesium aluminium alloy
Mast Clamp vertical / horizontal mounting: Heavy Duty Galvanised Steel up to 60mm (2¼")
Forward Gain dBd (typical): 10.0dBd ±1dB (12.15dBi)
Frequency range MHz: 470 - 790MHz Ch21 to 60
Gain at 4G-800 LTE band measured at 830MHz: -5dB (-15dB lower than Ch60)
Acceptance Angle (half-power beam-width) ( H / V ): H +/-12 degrees / V +/- 15 degrees @ 790MHz
Front / Back Ratio at 630MHz: >34dB
Cross Polar Rejection: >17dB
Wind load: 3.5kg (31.5N)
Dimension L x W x H mm: 1280mm x 305mm x 50mm
