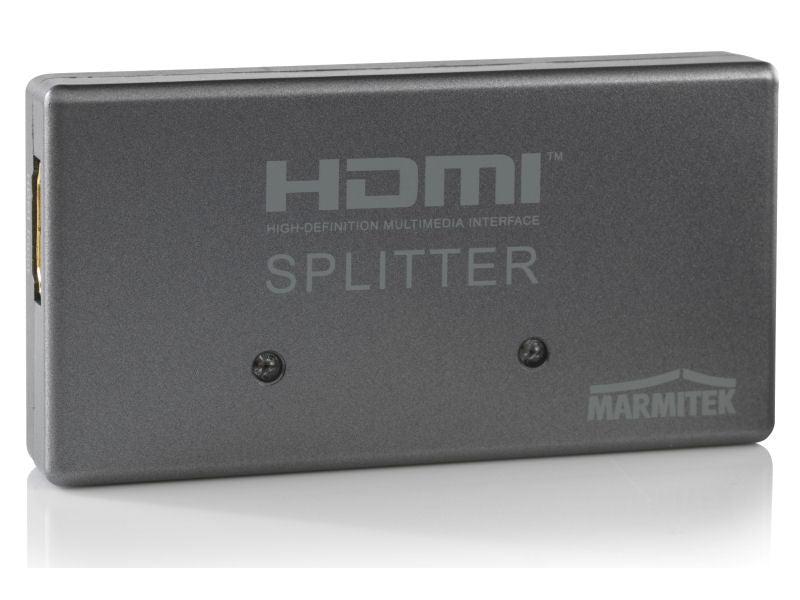

MARMITEK Split312™ HDMI® Splitter

Splits your HDMI signal to a 2nd HDTV or projector

• Enables image and sound from your HD satellite receiver, set-top box, games computer or Blu-ray Player to be simultaneously shown on 2 screens (HDTV or HD projector)
• Means that it is not necessary to change HDMI cables if you wish to watch films or want to play games on another screen
• Build-in amplifier and high quality 24K Gold Plated HDMI connections, ensuring that image and sound quality are retained
• HDMI ATC certified; fully compatible with all HDMI certified devices
• HDMI 1.2a + HDCP1.0/1.1
• Max HDMI cable length 15m

RESOLUTION
Supported HDTV Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported PC Resolution (max.): 1920x1200
Maximum Pixel Frequency (max.): 165MHz
Video Data Rate (max.): 4.95Gbps

INPUTS and OUTPUTS
HDMI Input: 1x HDMI (19-pin female) gold plated
HDMI Output: 2x HDMI (19-pin female) Gold plated
Maximum HDMI cable length: 15m

SPLITTER HOUSING
Dimensions (HxWxD): 86x44x16mm
Weight: 42g
