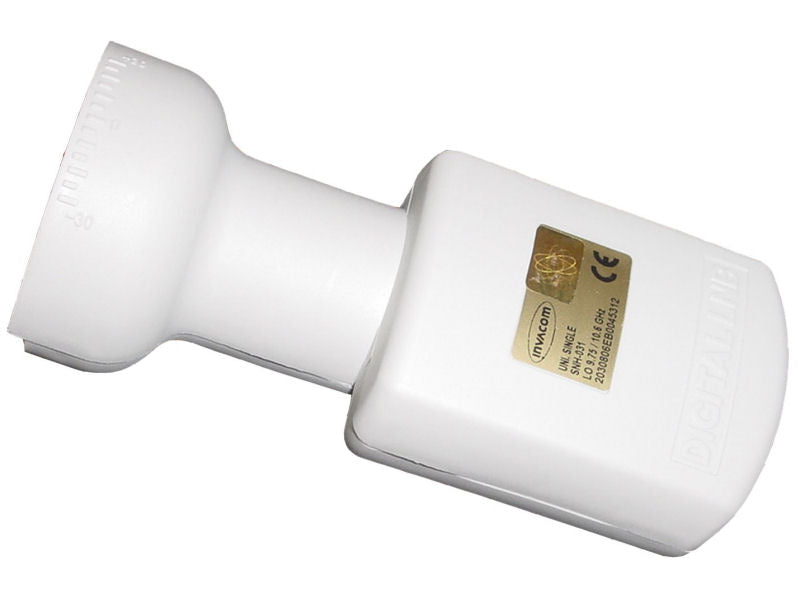

INVACOM SNH-031 0.3dB Universal LNB
A high performance universal LNB with an integrated feed-horn and 1 output.
Typically used with motorised dishes, or where the signal strength is poor.
Input Frequency: 10.7 - 12.75 GHz
Output Frequency: 950 - 2150 MHz
Noise Figure: 0.3dB typical
Gain: 50 - 60dB
Interface: 40mm clamp
Ideal dish F/D: 0.6
- Exact Feed Design
- Superior Phase Noise
- Excellent Isolation
- Very Low Spurious Levels
- Positive Gain Slope
- Tested for Ultimate Reliability
- Combined with Excepetional Noise Figure
