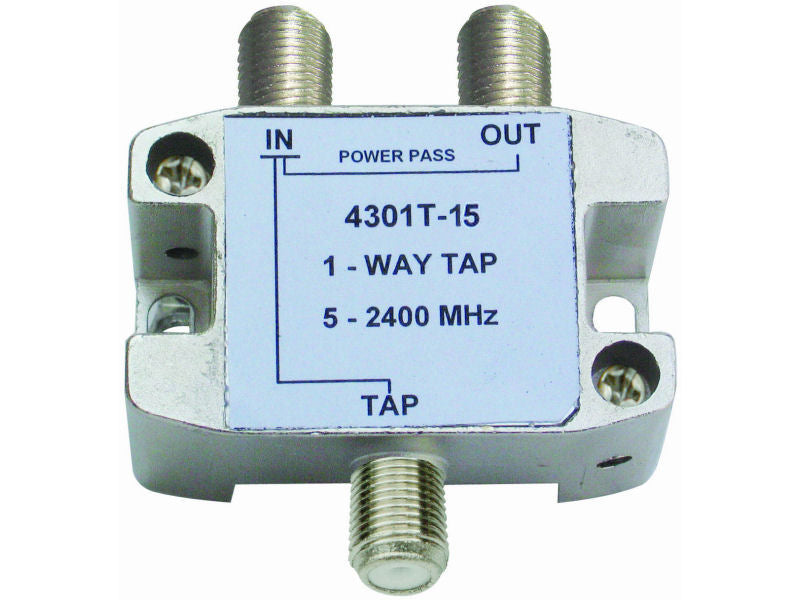

Internal 1/15 'F' Type Tap (5-2400mhz)
- Product SKU: 4301T-15
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|MATV / SMATV|'F' Taps (5-2400MHz)
1/15 F TYPE TAP Frequency range 5-2400MHZ. Power pass on trunk line. Fully screened RF shielded Zink Die-Cast housing with Nickel Plating and Earth Terminal built in. All Ports are 75ohm 'F' type with low Insertion loss. Screening (dB) 40-470 MHz: >75 470-1000 MHz: >65 1000-2400 MHz: >65 Tap Loss (dB) 5-1000 MHz: 15+/- 1.0 1000-2400 MHz: 15+/- 1.5 Through Loss (dB) 5-40 MHz: 1.0 40-1000 MHz: 2.0 1000-2400 MHz: 2.5 Isolation Out-Tap (dB) 5-40 MHz: 40 40-1000 MHz: 30 1000-2400 MHz: 25 Isolation Tap-Tap (dB) 5-40 MHz: - 40-1000 MHz: - 1000-2400 MHz: - RETURN LOSS (dB) 5-40 MHz: 26 40-1000 MHz: 14 1000-2400 MHz: 12
