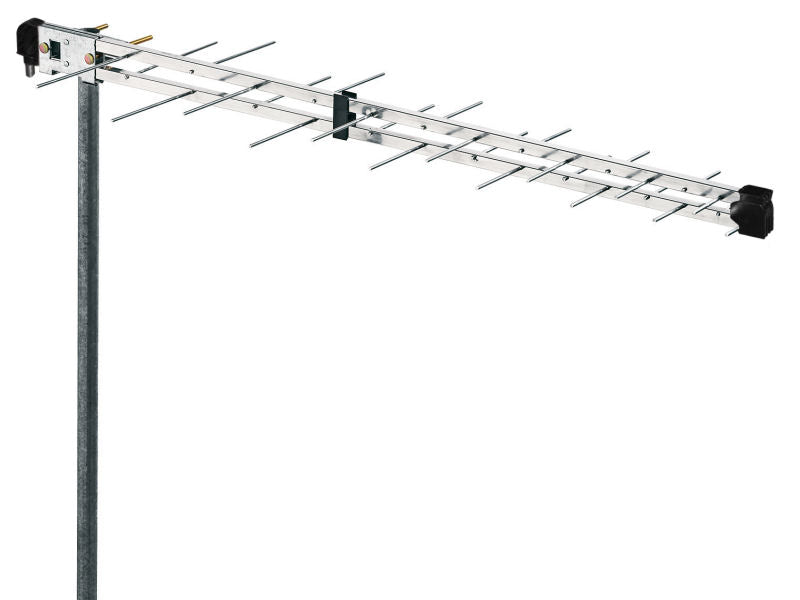

The Fracarro LP45NF is a pre-assembled log periodic aerial.
- Easy connection due to the connector being located near the mast clamp
- High level design of the dipole connection guarantees a highly reliable RF contact
- Can be mounted verticaly or horizontaly
- Excellent mechanical clamp resistance
- F connector is protected by a cap with bayonet clamp
TECHNICAL INFORMATION
Band: UHF
Channels (Europe): 21-69
Bandwidth (MHz): 470-862
Maximum gain (dBi): 11.5
Front-to-back ratio (dB): 36
Return loss (dB): -15
Beamwidth (-3dB) °: +/-25
Impedance (Ohm): 75
MECHANICAL CHARACTERISTICS
Dimensions (LxW): 115.5 x 86cm
Maximum mast Ø (mm): 60
Wind load at 120Km/h (720N/m2) Kg (N): 3.0 (29.43)
Connector type: F
