CYP Audience Audio Inserter (4K Supported)

CYP Audience Audio Inserter (4K Supported)

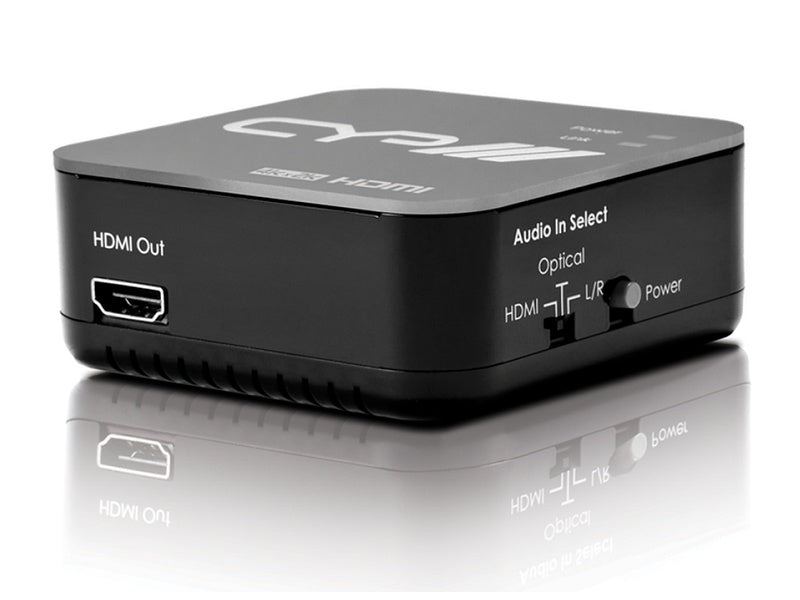

The AU-11CA-4K Audio Embedder lets you insert an external audio signal into any HDMI source. The device allows you to insert analogue or digital stereo and multi-channel digital surround sound signals (via Optical) to give users the capability to overcome audio issues within complex HDMI installation. The AU-11CA-4K also repeats the HDMI signal to allow an extended total HDMI cable range. This device supports 4K resolutions enabling flexible audio signal management into ultra high definition video signal paths.

• Compliant with HDMI, HDCP 1.2 and DVI 1.0
• Supports HDMI and Optical S/PDIF audio sample rate up to 192 kHz
• Supports LPCM Stereo, DTS and Dolby Digital via Optical input
• HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at full 1080p.
• Supports 4K HDMI Resolutions
• Supports 3D signals

Inputs 1x HDMI [1x HDMI Uncompressed AV and Data] 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)] 1x Toslink [1x Optical 2 Channel LPCM / Dolby Digital / DTS] 1x USB Mini B [1x Service - Propriety Data]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
PSU: 5V/1.2A
Dimensions 85mm [W] x 85mm [D] x 35mm [H]
Net Weight 260g
Gross Weight 440g
