CYP 1 HDMI to 7 HDBaseT™ Splitter (100m)

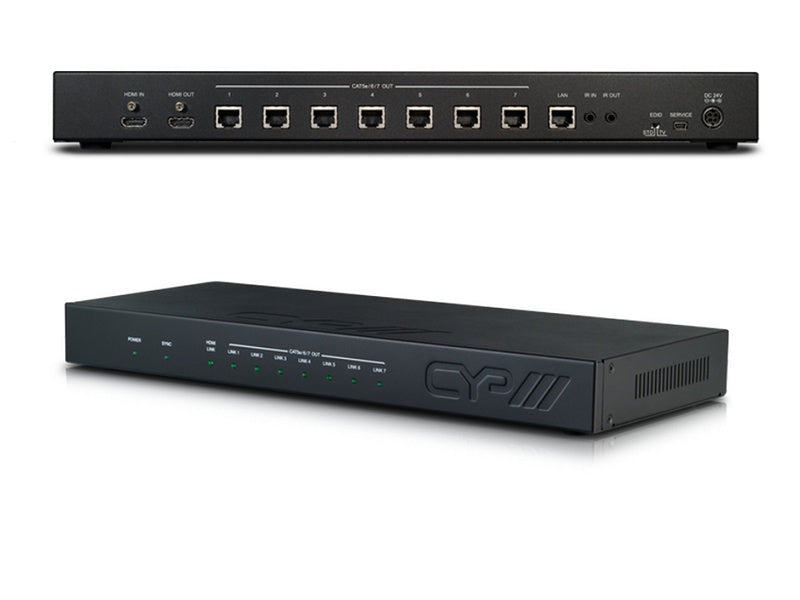

The PU-1H7HBTE enables a single HDMI source input to be distributed to 7 HDBaseT™ outputs. The HDBaseT™ outputs allow uncompressed distribution of HDMI, LAN, PoE, and IR signals over a Single CAT5e/6/7 cable up to lengths of 100m. Perfect for both residential and commercial AV installations, the PU-1H3HBTE can distribute HDMI signals to 7 displays. The product also includes an additional HDMI output for increased flexibility and can also be cascaded up to 5 times to allow distribution to potentially 50 screens or more.

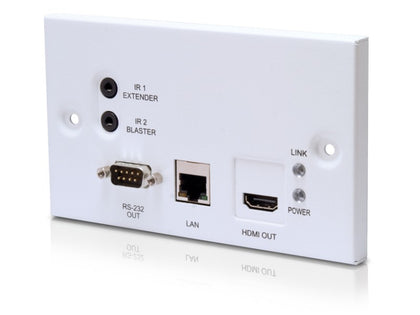

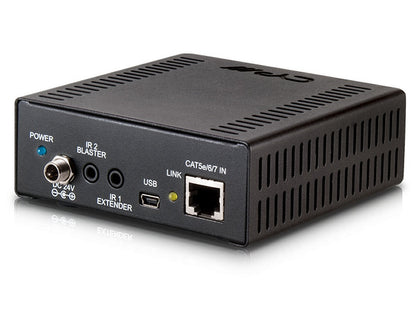

PU-507RX or PU-507WPRX Receivers are recommended to utilise the functionality of the HDBaseT™ outputs of this device.

• Supports all v1.4 HDMI resolutions plus 4k.
• HDMI, HDCP, and DVI compliant
• Supports HDMI / LAN / PoE (Power over Ethernet) / IR
• Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4K2K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
• Supports uncompressed video/audio up to 10.2Gbps
• Additional HDMI bypass output provided for increased flexibility
• Supports HDCP repeating and CEC functions
• Uncompressed data transfer over single CAT cable (100m - CAT6/7; 80m - CAT5e)
• Audio support up to 7.1CH and Dolby TrueHD, DTS-HD
• Supports 3D signals
