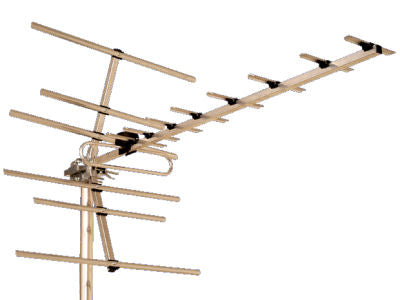

BLAKE Super 10 Element A (Box)
BLAKE Super 10 Element A (Box)
- Enhanced for DTT reception
- Ideal for good to medium signal strength areas
- “Inclined” folded tube dipole incorporating an easy fit termination with a soldered brass electrical terminal, braid clamp and a printed circuit board balun for improved gain, impedance match, bandwidth and impulsive noise rejection
- Watertight insulator cap, malleable in all working temperatures
- Stylish coloured plastic components
- Fortified 6 element reflector design for a refined back to front ratio
- Tilt and slide clamp to facilitate adjustment in elevation
- Element design has a superior strengthened profile incorporating an enlarged moulded securing clip
- Simple, quick and easy assembly and installation
Group: A
Channels: 21-37
Frequency Range: 470-606MHz
Forward Gain (dBd): 11.5
Front To Back Ratio (dB): 19-21
Acceptance Angle (degrees): 23-24
Number of Directors: 10
Number of Elements: 16
