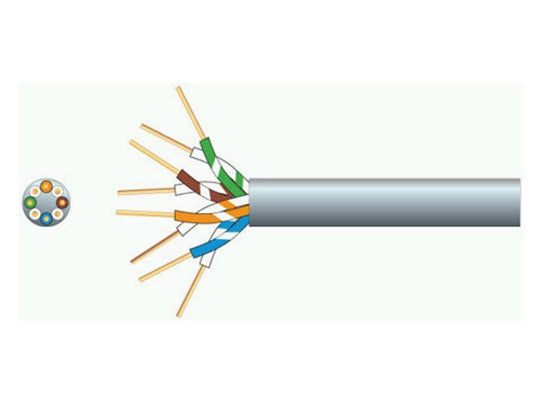

This CAT5E Cable from WEBRO is a multi-pair cable used mainly for Data transmission that supports a frequency range up to 100mHz and speeds up to 1 gigabit per second.
CONSTRUCTION
Inner conductor: Plain Copper
Dielectric: HDPE Insulation
Sheath: PVC Sheath
MECHANICAL CHARACTERISTICS
Inner conductor diameter: 0.50mm nom Plain Copper
Insulation diameter: 0.95mm ± 0.10 mm
Colour Sequence: 4 Pair: Blue and White/Blue, Orange and Orange/White, Green and Green/White, Brown and White/Brown
Sheath Diameter: 5.20mm Nominal
Cable: Storage/operating temperature: -15°C to +70°C
Cable: Minimum installation temperature: -5 °C
ELECTRICAL CHARACTERISTICS
DC resistance conductor: = 96.5 O/km @ 20°C
Velocity Ratio: 65%
Impedance at 4 to 100MHZ: 100O
