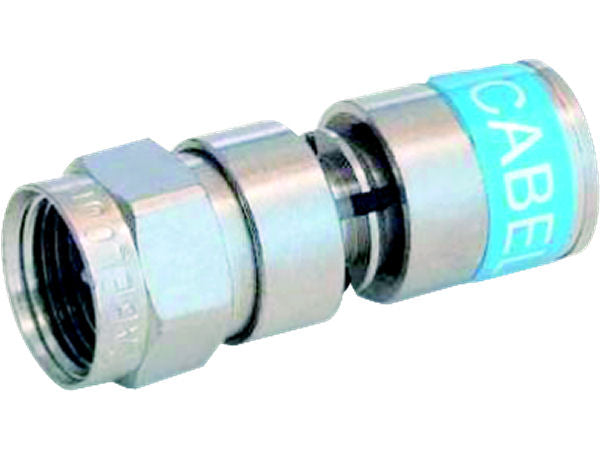

Cabelcon CX3-WF65 compression connectors are developed for digital multimedia applications and exceed all requirements in standard EN 50083, class A.
The transfer impedance in the CX3-WF65 is low - less than 0.2 mOhm/connector within the return path band (5 - 30 MHz). This is very important for the screening efficiency for connectors used in return path applications.
Design
The one-piece connector comes with a free spinning nut - hex 11 (7/16" compatible) - for easy and reliable installation.
Type and stripping dimensions are stamped on the body for safe identification and measuring on location. All standard compression tools can be used. The stripping dimensions meet the standard preparation length 6.5 mm / 6.5 mm (1/4" / 1/4").
There is no need for additional sealing. The intelligent construction and the O-ring in the front part secure a watertight connection according to IPX8*.
Compatible with the following crimping tools:
C2004
C2003
370042
26628
