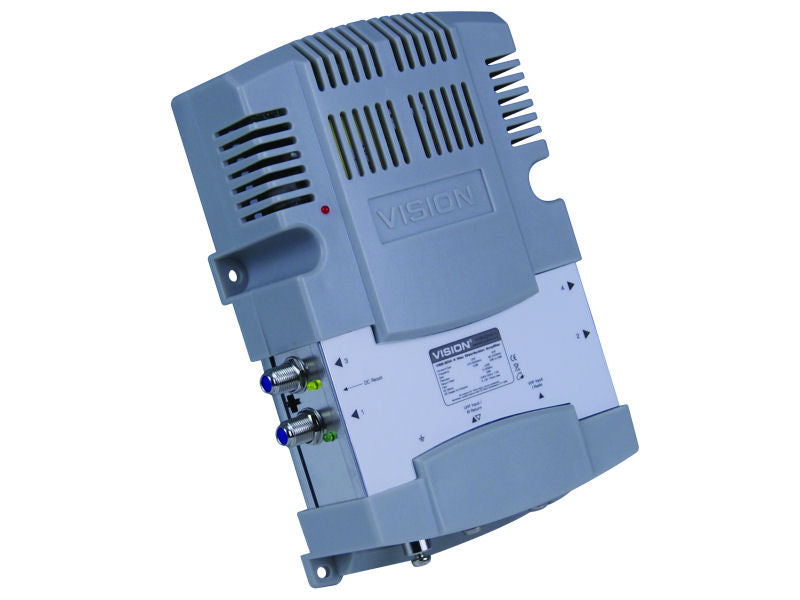

VISION-Link 'F' 4 Set Amp VHF/UHF 10dB LTE
- Product SKU: V65-204LTE
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|Domestic|Indoor Amps - Optima / Vision
4-way IR return-path distribution amplifier with 4G-800 LTE filtered input.
- Professional design indoor distribution amplifier with IR return
- Compatible with Visionlink™ and other "Remote Eyes" for Sky™ satellite receivers
- High 10dB UHF gain for long cable runs
- Separate VHF input for FM and DAB Radio
- Powers "Remote Eyes" at 9V
- S/C protected with LED indicator on all outputs
- Earth-Post for up to 6mm2 earth cable
No of Inputs: 2 (1 X VHF + 1 x UHF with return path)
No of Outputs: 4
UHF Input Frequency: 470 ~ 790MHz
VHF Input Frequency: 85 ~ 240MHz
Return Path Frequency: 5 ~ 30MHz
UHF Gain: 10dB ±2dB
VHF Gain: 4 ~ 6dB
Maximum Input: 80dBµV
Return Path Gain: 2dB
Connectors: F Female
Power: 240V AC 50Hz 11W (UK BS 1363 - 3 pin mains plug with 3A fuse)
Dimensions L x W x H: 180mm x 140mm x 52mm
Weight kg: 0.46
