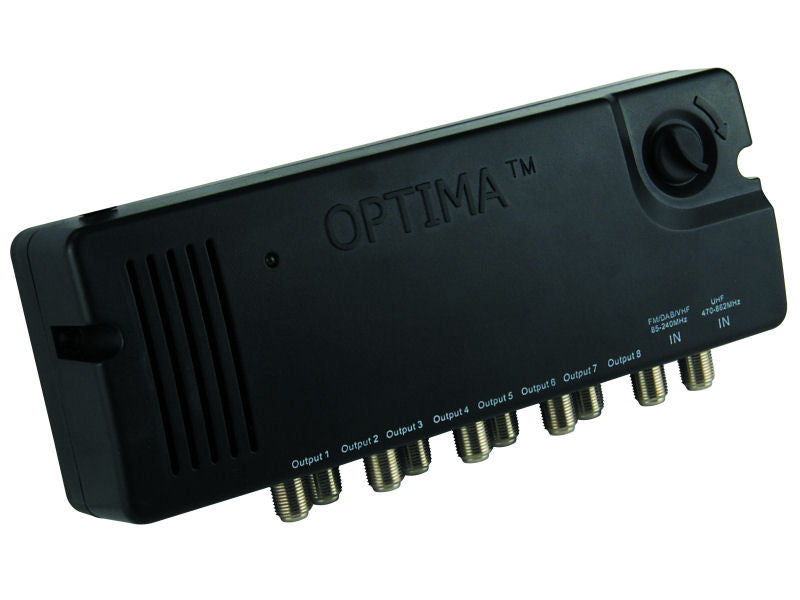

OPTIMA 8 Set Amp 10-24dB Variable 4G-800

The Optima DA8-20 is a multi-output domestic LTE distribution amplifier with level control.
8-Way Variable Gain

It is designed to easily distribute TV and radio signals in a domestic environment with enough gain to overcome long cable losses and operate in a wide range of off-air signal levels for digital or analogue reception.

• High quality fully screened amplifiers with F connectors
• High gain / high output, ideal for digital TV
• Input filtered to minimise 4G-800 LTE interference
• Level control for optimum performance
• SMD technology for high reliability
• Built-in mains power supply with UK plug
• Visible mounting holes for easy fixing

No of inputs: 2
No of outputs: 8
Frequency range: 40 - 240MHz : 470 - 790MHz
Maximum Gain VHF 85 to 240MHz: 2dB
Maximum Gain UHF 470 to 862Mhz: 20dB
Level control adjustment attenuation: 0 - 12dB
Maximum output (IMD3-60): 93dBµV
Maximum input (attenuator set to min gain): 71dBµV
Return Loss (Typical): >15dB
Connectors: F Female
Power: 230V AC 50Hz 3W
Dimensions inc connectors: 210 x 107 x 43mm
Weight: 0.56kg
