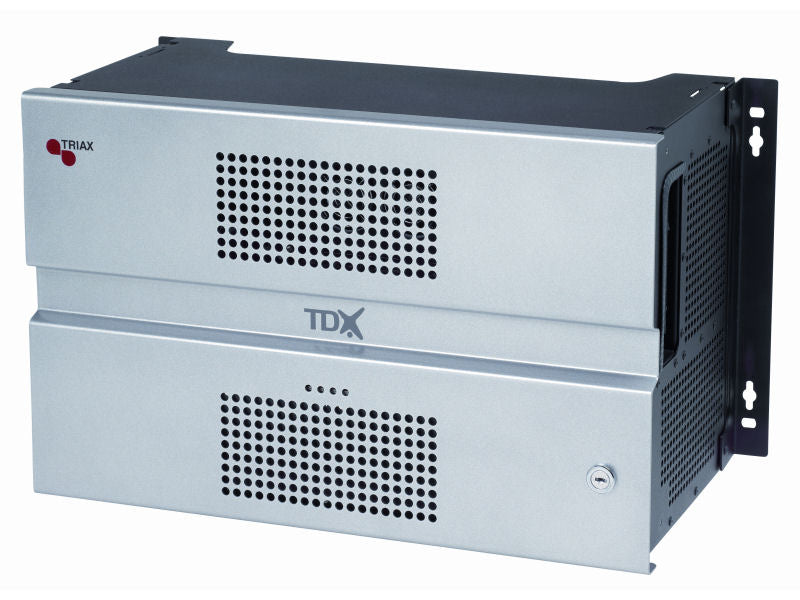

TRIAX TDX Rack Unit
- Product SKU: 492090
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|MATV / SMATV|Triax TDX Modular Headend
TRIAX TDX Rack Unit
TDX. Receive the technology that turns everything on its head.
Forget everything you know about headends. With TRIAX TDX you move into a completely new world. TRIAX's revolutionary TDX Pool technology simplifies the setting up and handling of headends. This technology makes the input and output modules mutually independent. All input signals, regardless of whether they are received via satellite, terrestrial, cable, audio/video or via the Internet, can be flexibly and independently distributed from a "pool" to each and every output module.
Each of these input signals can be converted to any output signal: PAL, QAM, COFDM or IP, and because the input signals are not fixed to any particular outputs, an input signal can be
assigned to several output modules. It's that simple.
CABINET
Frequency range (TV OUT / MODULE RF IN): (MHz) 47-862
Impedance (TV OUT / MODULE RF IN): (Ohm) 75
Return loss (TV OUT / MODULE RF IN): (dB) >10
Testpoint: (dB) -20
Output level max @ 60 dB IMD 24 combined channels: (dBµV) 103
Power Supply:
Operating voltage (VAC) 190-260 50/60 Hz
Power consumption, max (W) 280
Max LNB control (mA) 4 x 305
