TRIAX TDH 811 DVB-S/S2 Module (Front End)
- Product SKU: 692820
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|MATV / SMATV|Triax TDH Modular Headend
Product description:

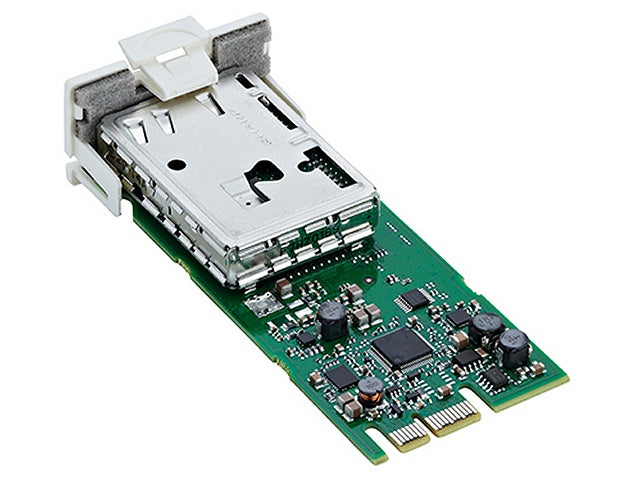

DVB-S/S2 frontend module
The DVB-S/S2 frontend module is an input module for the reception of digital satellite signals in a TDH 800 headend system. The module can receive a complete transponder and all services on the chosen frequency can be transferred to the TDH 800 pool.
The DVB-S/S2 frontend module includes an IF tuner with antenna loop through and a QPSK/8PSK demodulator with serial transport stream input to the TDH 800 headend system.
Features:
- Antenna loop through.
- Software downloading through TDH 800 system controller module.
- Preconfiguration from/to file through system controller module.
- Log to file/flash.
- DVB-S compliant, up to 45 MS/s.
- DVB-S2 compliant, up to 37 MS/s.
- Programmable LNB control: 0/14/18V - 0/22kHz.
- All services will be transferred to the TDH 800 pool.
- DiSEqC compliant (1.0)
