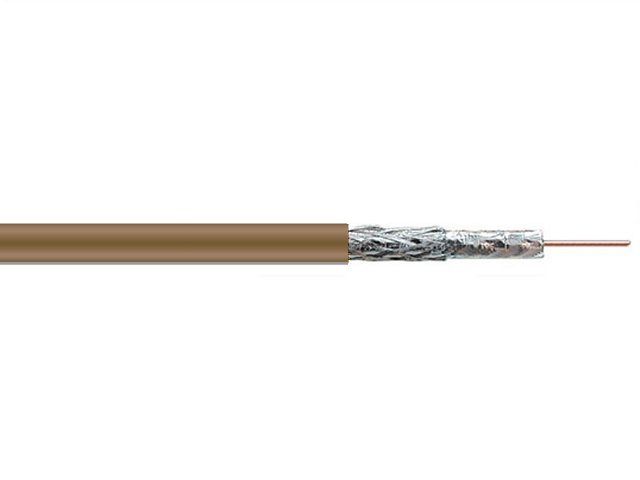

250m WEBRO 'FOAM' Domestic RG6 Brown PVC
250m WEBRO 'FOAM' Domestic RG6 Brown PVC
Available:
In Stock
Wishlist
Compare
- Product SKU: 7294
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|Cable|Cable - Coax 1mm
£32.99
Double Screened Foil/Braid
- Copper Coated Steel Inter-Conductor
- Ideal for FM-DAB-UHF
- Ideal for Satellite - (Loss subject to length of cable run)
Construction
- Inner conductor: Copper Clad Steel
- Dielectric: Foam PE
- Foil: ALU/P
- Braid: ALU
- Sheath: PVC
Mechanical Specifications
- Center Conductor: 1.02mm CCS
- Dielectric: Foam PE
- Diameter over Dielectric: 4.8mm
- Shield: AL/P Foil
- Braid: 0.12mm x 64 AL wire
- Sheathing Material: PVC
- Diameter over Sheath: 6.80mm x 13.90mm
Electrical Specifications
- Impedance: 75 Ohm
- Capacitance: 16.2 pF/ft
- Velocity Ratio: 83%
- DC Resistance Conductor: 28 Ohm/1000ft
- DC Resistance Shield: 19.3 Ohm/1000ft
Attenuation (db/1000ft) at (Each Leg)
