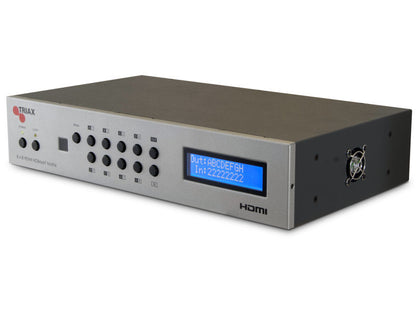

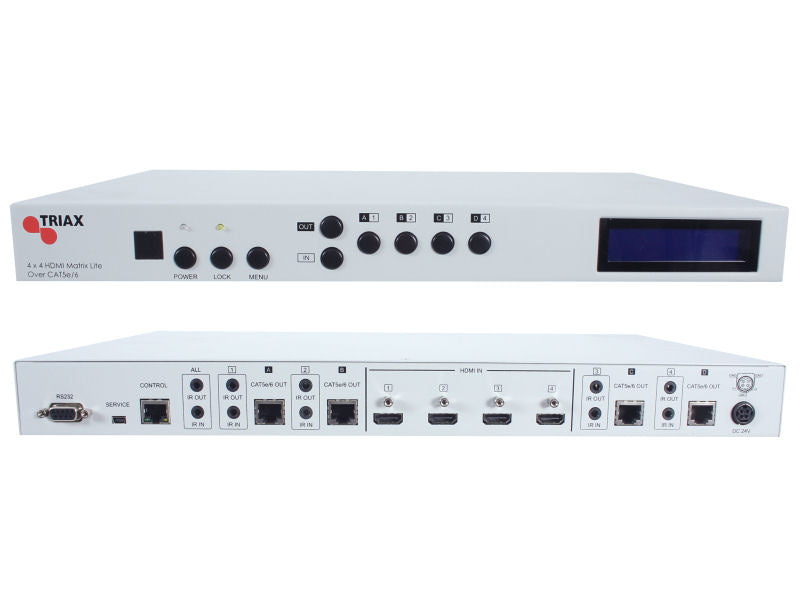

TRIAX HMX 4x4L HDMI® Matrix 4x4 LITE *KIT*
- Product SKU: 310020
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|HDMI Matrixes - Triax
TRIAX HMX 4x4L HDMI® Matrix 4x4 LITE *KIT*
1 x Matrix Switch
4 x Cat/HDMI Receivers
4 x IR Blasters
4 x IR Receivers
The HMX 4x4L is a 4 by 4 HDMI Matrix switch that converts the HDMI source signals to CAT5e/6/7. With resolutions up to 1080p Full HD, 1920x1200@60Hz and multichannel digital audio supplied by up to four high-definition sources to any of the four CAT5e/6/7 outputs. It supports digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD.
The HMX 4x4L is also compatible with 3d content and can be displayed on a 3DTV, a 3D source will be required. The HMX 4x4L allows four HDMI sources to be independently controlled and distributed to four sink (TV’s) displays up to 70 metres away along with HDMI Extender over single CAT5e/6 incorporating IR Signals.
System Requirements:
- Input source equipment with HDMI connection
- CAT6 250MHz minimum is recommended for future proofing, backward compatible CAT5e cable
- Output display or audio receiver equipment with HDMI connection cables
